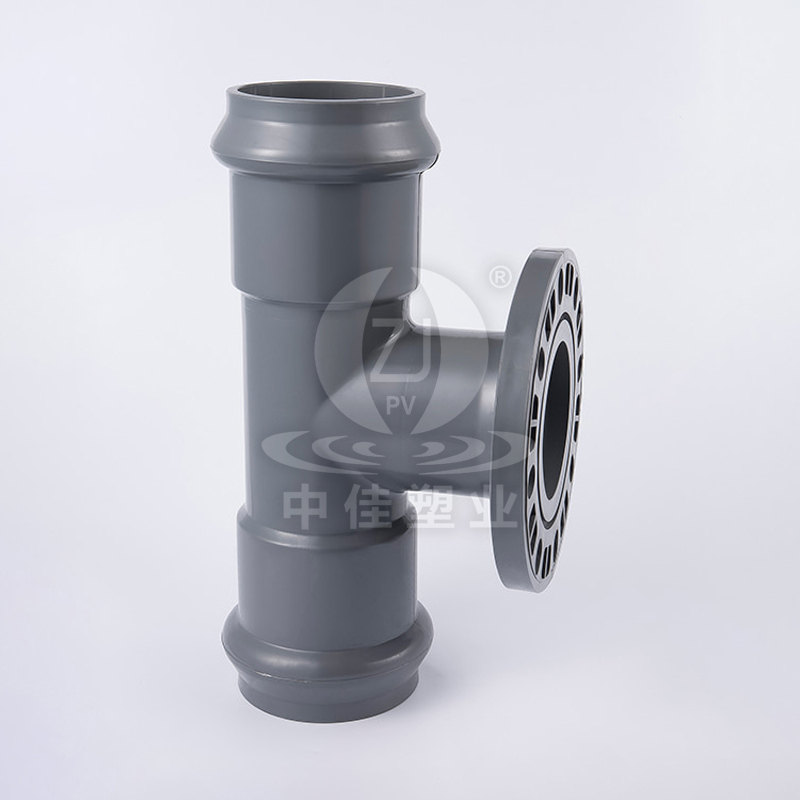

  • PVC-U Tee With Flanged Branch (F/F)
  • PVC-U Tee With Flanged Branch (F/F)

PVC-U Tee With Flanged Branch (F/F)

Brand:
Zhongjia

Material:
PVC-U

Size:
φ110mm-φ315*200mm

Technique:
Injection moulded

Connection:
Socket

Color:
Light gray

Standard:
DIN standard

Nominal Pressure:
PN10

Origin:
China

PREV：PVC-U Tee (F/F/S) NEXT：PVC-U Tee (F/F/F)

  • Description

  • Additional info.

  • Size Guide

  • PVC-U faucet flanged tee fittings, also known as PVC-U faucet tee with flanged branch, have one or two “gasketed” bell ends with rubber rings, and a branch outlet have a flange, which allows a mechanical joint intended to connect PVC-U pipe to any flanged piping components (such as valves, pumps..etc).


    Product Features and Advantages:
    ● Improved Strength at Rubber Ring Socket.
    ● Absolute Water Seal.
    ● Superior Elasticity and Flexibility.
    ● Quick Installation.
    ● No Ambient Influence.
