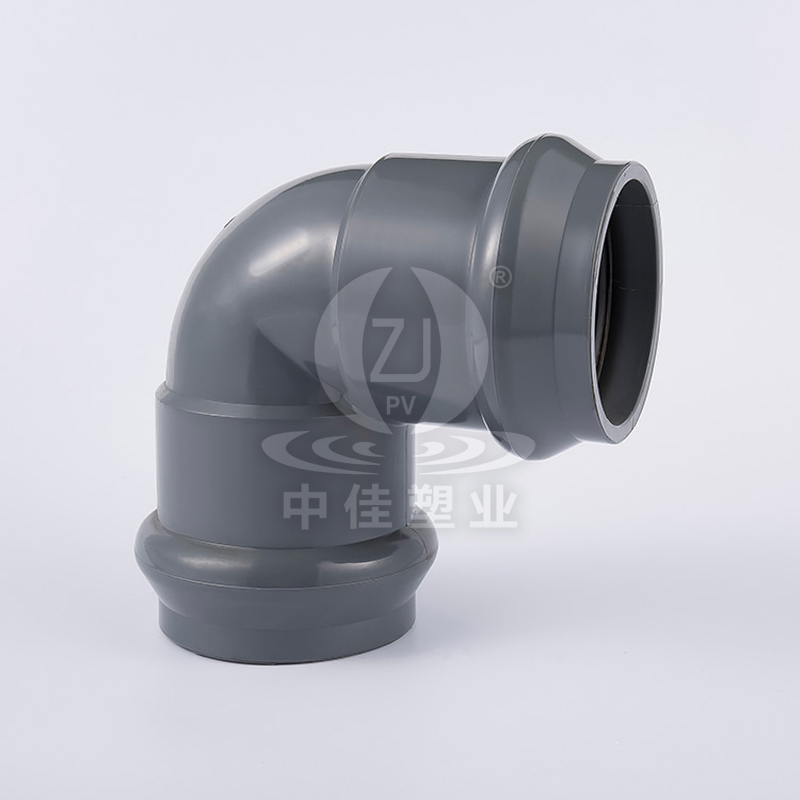

PVC-U Elbow 90° (F/F)

Brand:
Zhongjia

Material:
PVC-U

Size:
φ63mm-φ355mm

Technique:
Injection moulded

Connection:
Socket

Color:
Light gray

Standard:
DIN standard

Nominal Pressure:
PN10

Origin:
China

PREV：PVC-U Elbow 45° (F/F) NEXT：PVC-U Repaired Coupling

  • Description

  • Additional info.

  • Size Guide

  • PVC-U faucet 90 degree elbow, also called PVC-U faucet bend, has a rubber ring placed in one or two bell end. PVC-U faucet elbow 90 degree allows to join two lengths of PVC-U pipe on an angle of 90 degrees.PVC-U faucet 90 degree elbow can be provided in a diameter from 63mm to 355mm, with a normal pressure rating of PN10.


    Product Features and Advantages:
    ● Anti-aging and long service life: PVC pipes containing carbon black can be stored outdoors and will not be damaged by ultraviolet radiation. long-lasting.
    ● Good chemical corrosion resistance: It can withstand the corrosion of various media, and the substances in the soil will not degrade the pipeline. PVC is an electrical insulator, so it will not rot, rust or electrochemically corrode.
    ● Good wear resistance: The wear resistance of this product is 4 times that of steel pipes. In the field of mud transportation, compared with steel pipes, PVC pipes have better wear resistance, which means that pvc pipes have a longer service life and better economy.
    ● Reliable connection: The polyethylene pipe system is connected by electric heat fusion, and the strength of the joint is higher than that of the pipe body.
    ● Good low-temperature impact resistance: The low-temperature catalytic temperature of PVC is extremely low, and it can be used safely in the temperature range of -60-60 °C. During construction in winter, due to the good impact resistance of the material, the pipe will not be brittle.
